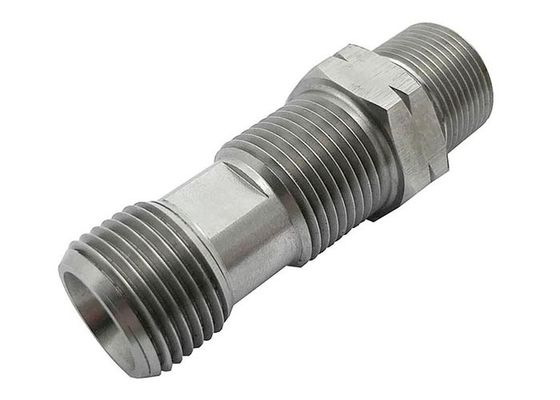

Aerospace Industry Custom Machined Aluminum Parts Custom Machined Parts Aluminium Machined Parts
About CNC Turning
When engineers want to know if a specific part of a design is going to work, they look to CNC Turning. The finished article is used to create pieces of machinery that are often highly-complex. A typical car has around 10,000 parts alone.
A trained operator will be familiar with many types of materials, ensuring the dimensions of the finished piece exactly match the design specifications
Competitors are required to:
CNC turning and milling – what’s the difference?
the answer, others may find this a useful insight into what goes on behind the scenes in the world of metal fabrication!
Items processed by a lathe will be cylindrical and must be on-centre. Turned parts can range from simple rings to complex curved components. CNC turning is the most efficient way to mass-produce these kinds of parts.
Various cutting tools can be installed within the lathe tooling head (pictured below) to perform different cutting operations sequentially, to produce parts in a one-pass process. Straight cuts, tapers and contours can all be created by varying the angle and depth of the cut.
awing carefully, don’t accept the order if we can’t meet the print requirement, we don’t ship out the parts if the parts failed to meet the customer’s requirements.
|Name||Custom Manufacturing Service, CNC Turning Parts.|
|Materials||Aluminum, Copper, brass, stainless steel, steel, iron, zinc etc.
Other Special Materials: PTFE/Nylon/POM/Titanium//PEEK, etc.
|Surface Treatment||Anodizing, Hard Anodizing, Brushing, Galvanized, Laser Engraving, Silk printing, Polishing, Powder Coating, Passivation, Alodine, Barrel Grinding, Trommelen, Chemical Conversion, Bead Blasting, Satin Finish, Chrome Plating etc.|
|Tolerance||ISO2768m, ISO2768f, 0.005mm.|
|Testing equipment||CMM; Tool Microscope; Automatic Height Gauge; Manual Height gauge; Dial Gauge; Screw Gauge; Plug Gauge; Micrometer; Marble Platform; Roughness Measurement|
|Processing||CNC Turning, CNC milling, CNC machining, Grinding, EDM Wire Cutting, Sink EDM|
|File Formats||Solid Works, Pro/Engineer, AutoCAD(DXF,DWG), IGS,STP, PDF,TIF etc.|
|Service Project||Free Design Review(DFM report), Production And Technical Service.|
|Roughness||Ra0.4, Ra0.8, Ra1.6,Ra3.2, As machined.|
|CNC Milling||4 axis||200mm||BangBang||China||5||0.005mm|
|CNC Milling||5 axis||200mm||BangBang||China||1||0.005mm|
|Surface Grinder||PSGC-4080 AHR||400*800mm||Proth||Taiwan||2||0.002mm|
|High Speed Wire Cut||200*500mm||Jicheng||China||4||0.02mm|
|Medium Speed Wire Cut||DK7732C-C||320*400mm||Baoma||China||4||0.01mm|
|Laser Engrave Machine||G20||Cherrywoolf||China||1|
|Other equipment:Drill machine, Tapper, Polisher, EDM puncher, Ultrasonic cleaner, Sand blaster machine, Saw machine, Magnetic grinder.|
|CMM||CROMA 564||500*600*400mm||SERERN||Joint venture||2||0.003um|
|Film thickness gauge||AR932||0-1700um||Smartsensor||China||2||
Why Choose Xinbo for CNC Machining?
Iterate part designs quickly and accelerate product development with quick-turn parts. Our experienced engineering team will help spot any difficult to machine features before your design is sent to the manufacturing floor and save you from costly reworks further down the product development cycle.
Why some of the parts have to be made by CNC machining instead of injection molding?
There are three main reasons, the first one is: some of the melt plastic has a very high viscosity(too thick) for the material flow to fill in the mold, for example PTFE.
The second reason is, some of the parts has to be have uneven wall thickness, that means it will have quality issue(for example sink mark, deformation or shot shot) if it is made by injection process. For CNC parts it don’t have the wall thickness limitation.
The third reason is: the quantity is small, it’s not worth to make a injection mould, the cost of the injection tooling at least thousands of USD, if the cost separated to couple of parts, the unit price will be very high.
